PATENT DRAWINGS

HIGHLY EXPANDABLE MULTIPURPOSE MICRO MOTORHOME

REFERENCE NUMERALS

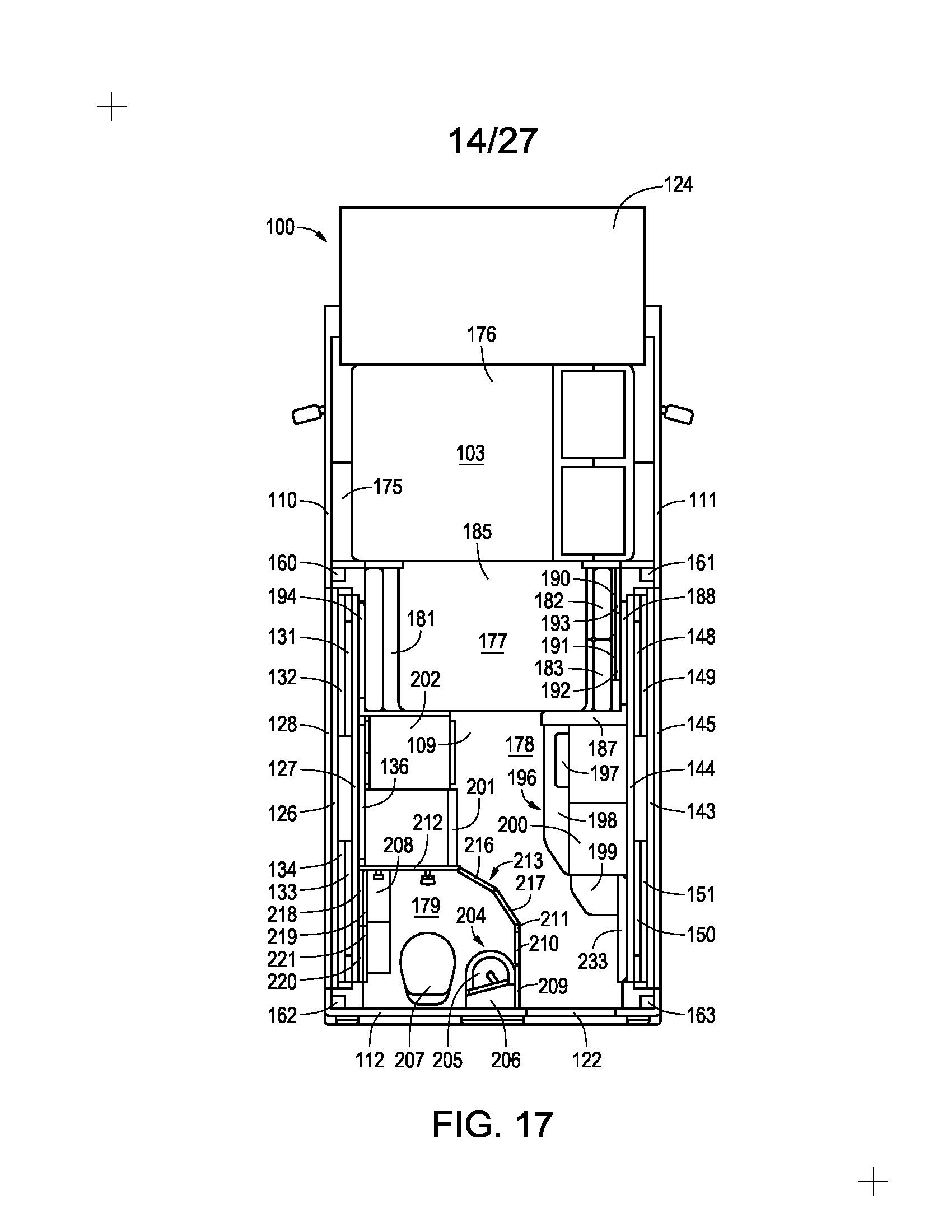

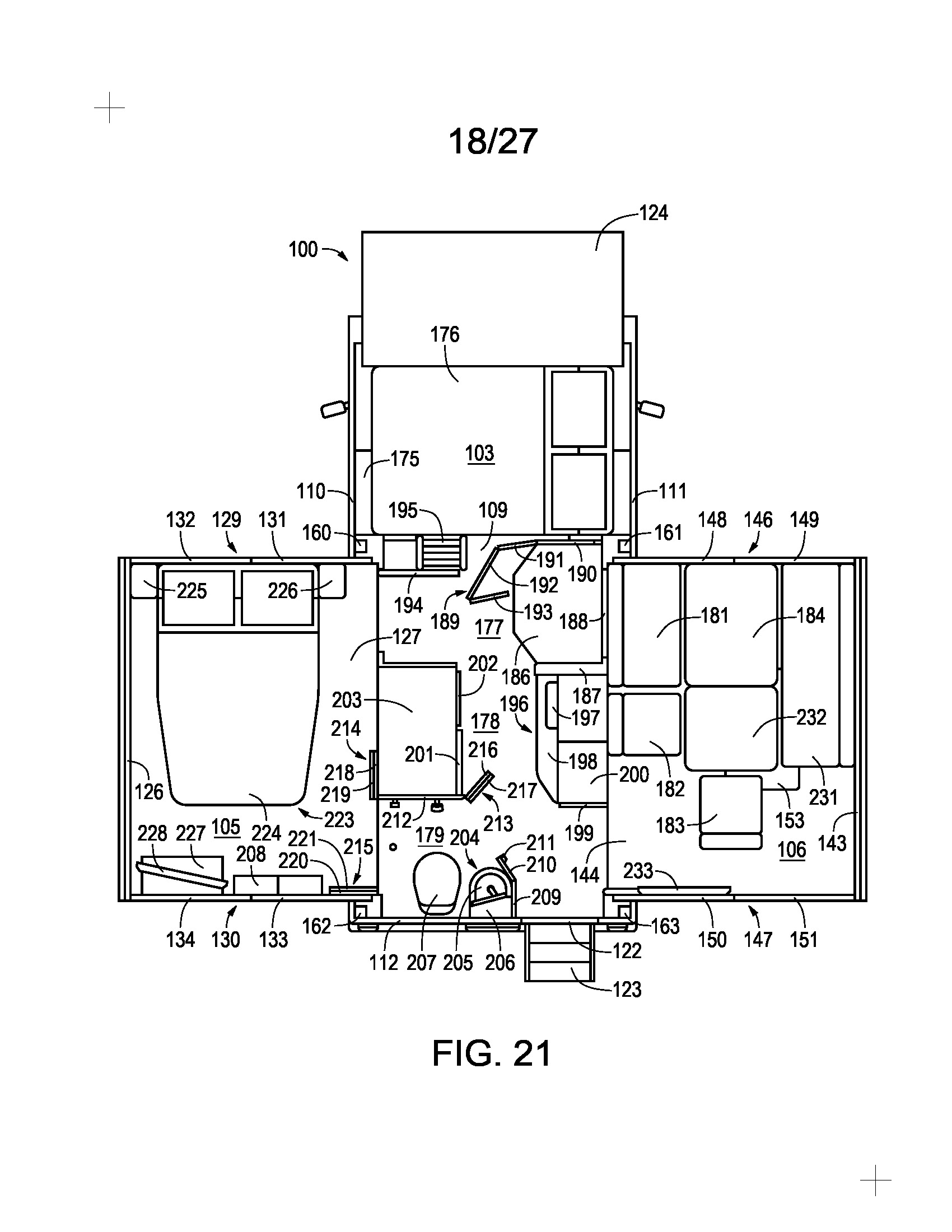

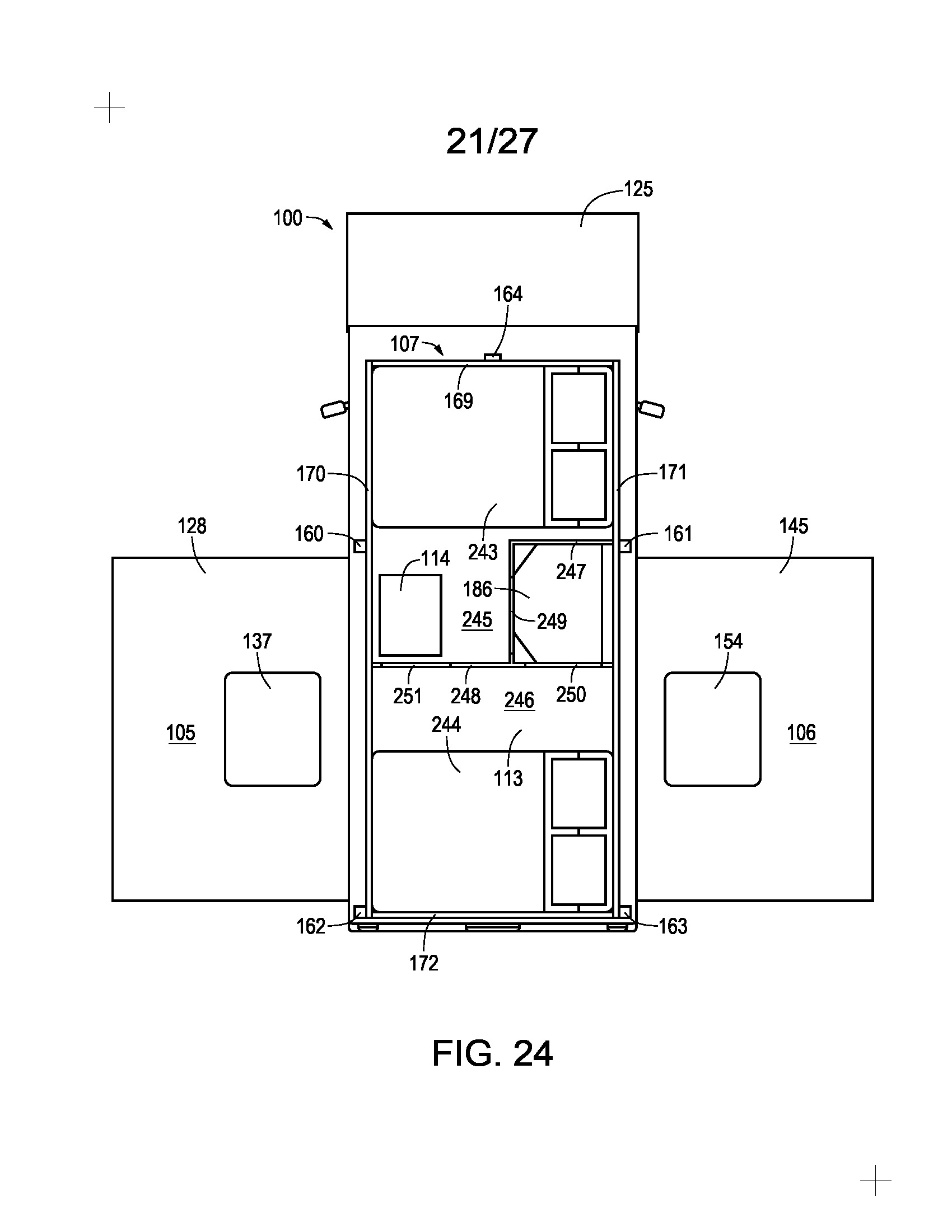

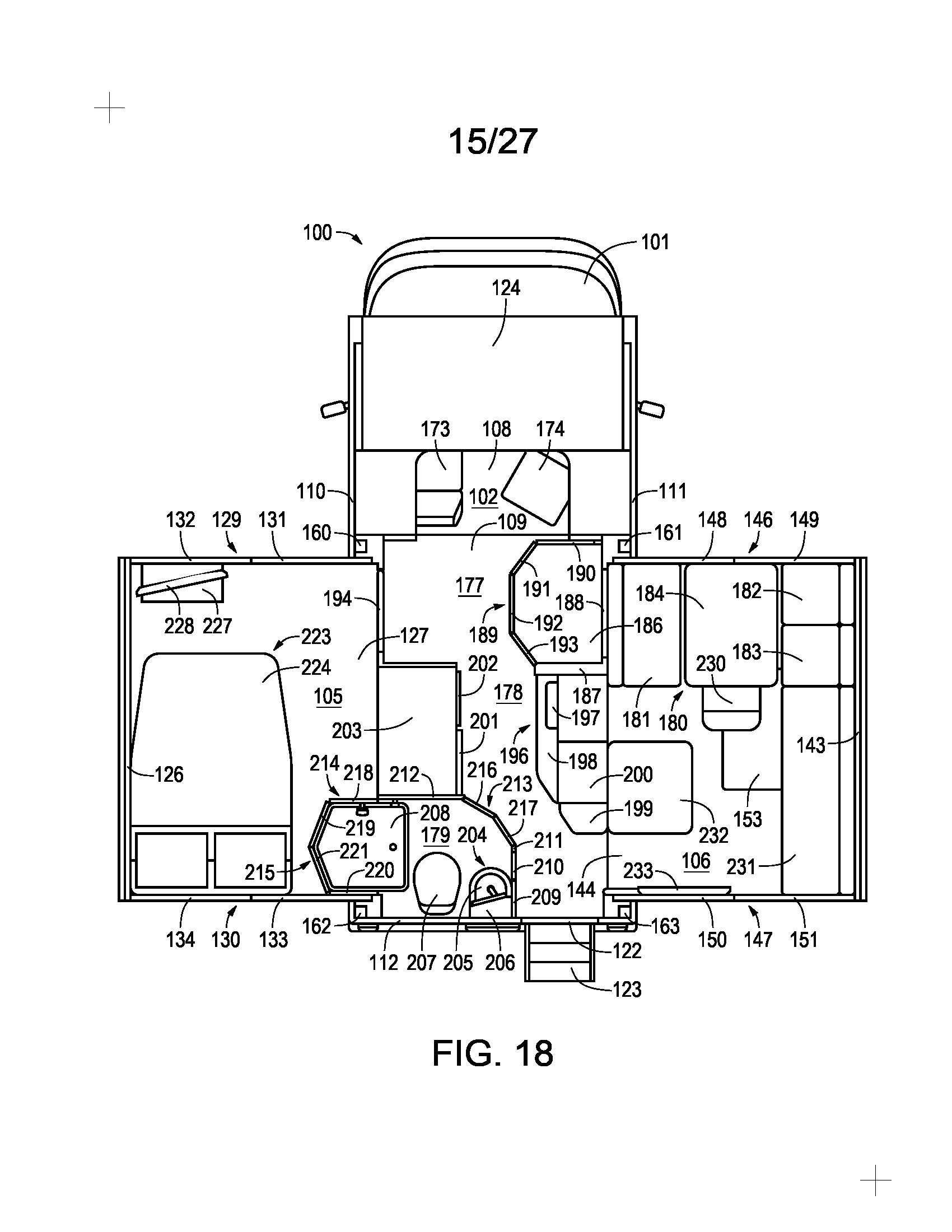

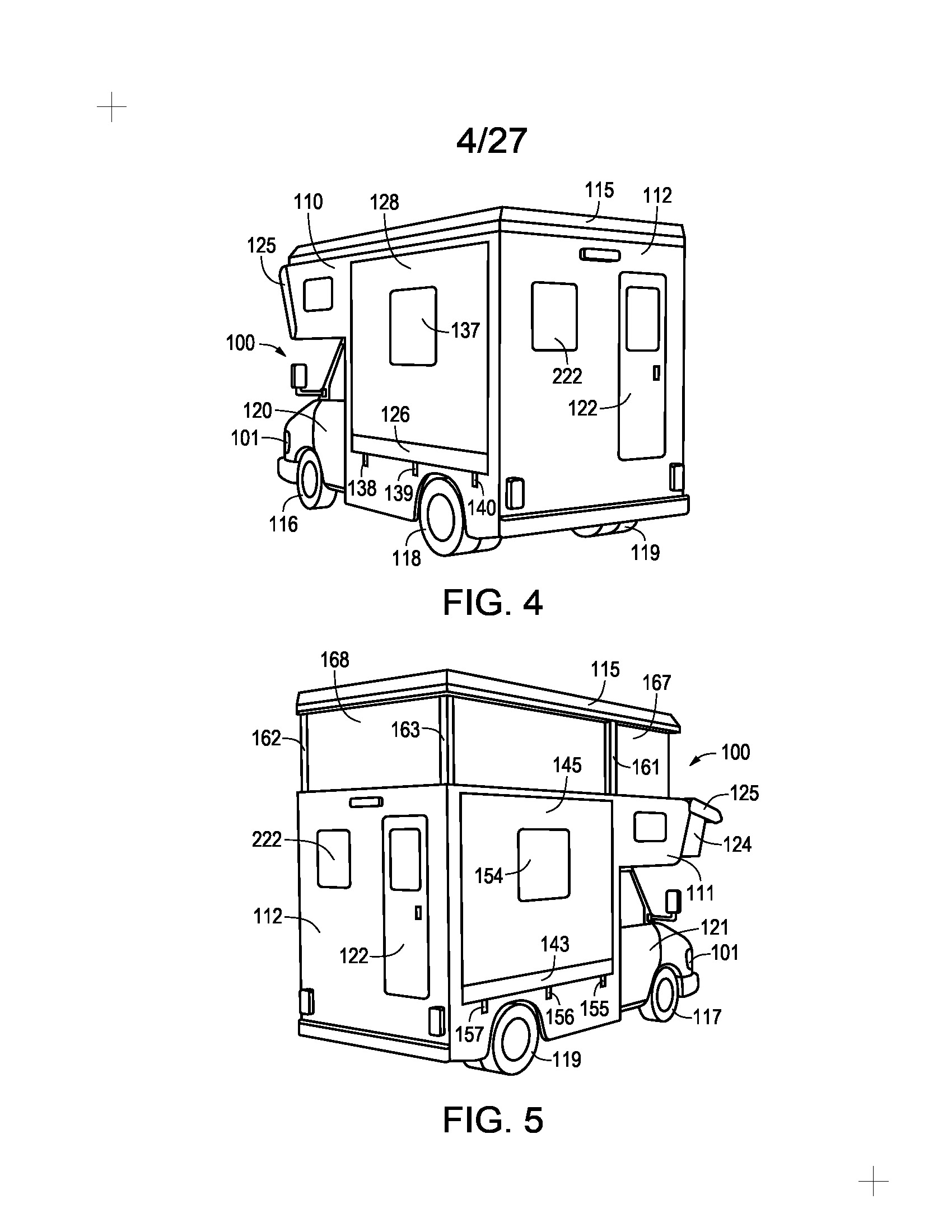

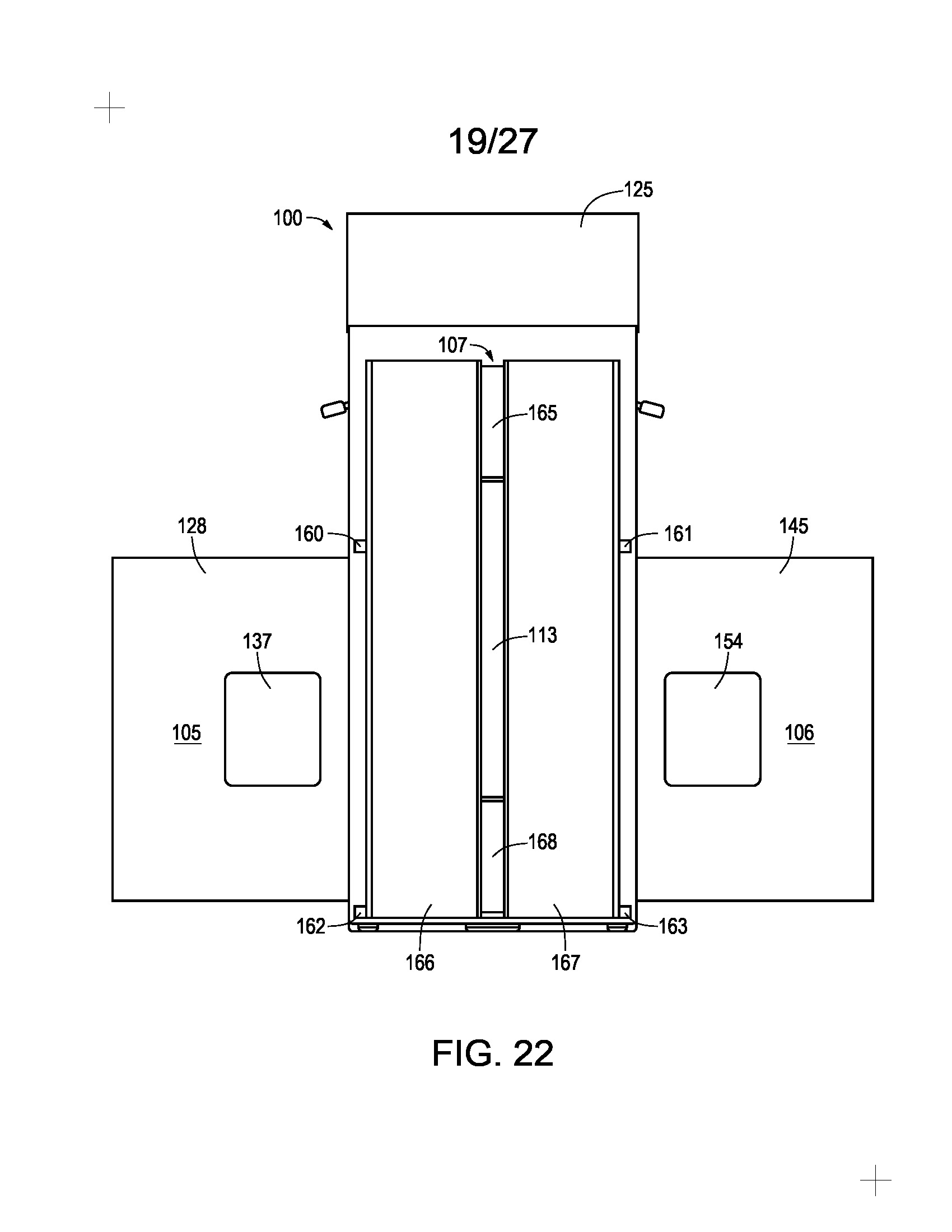

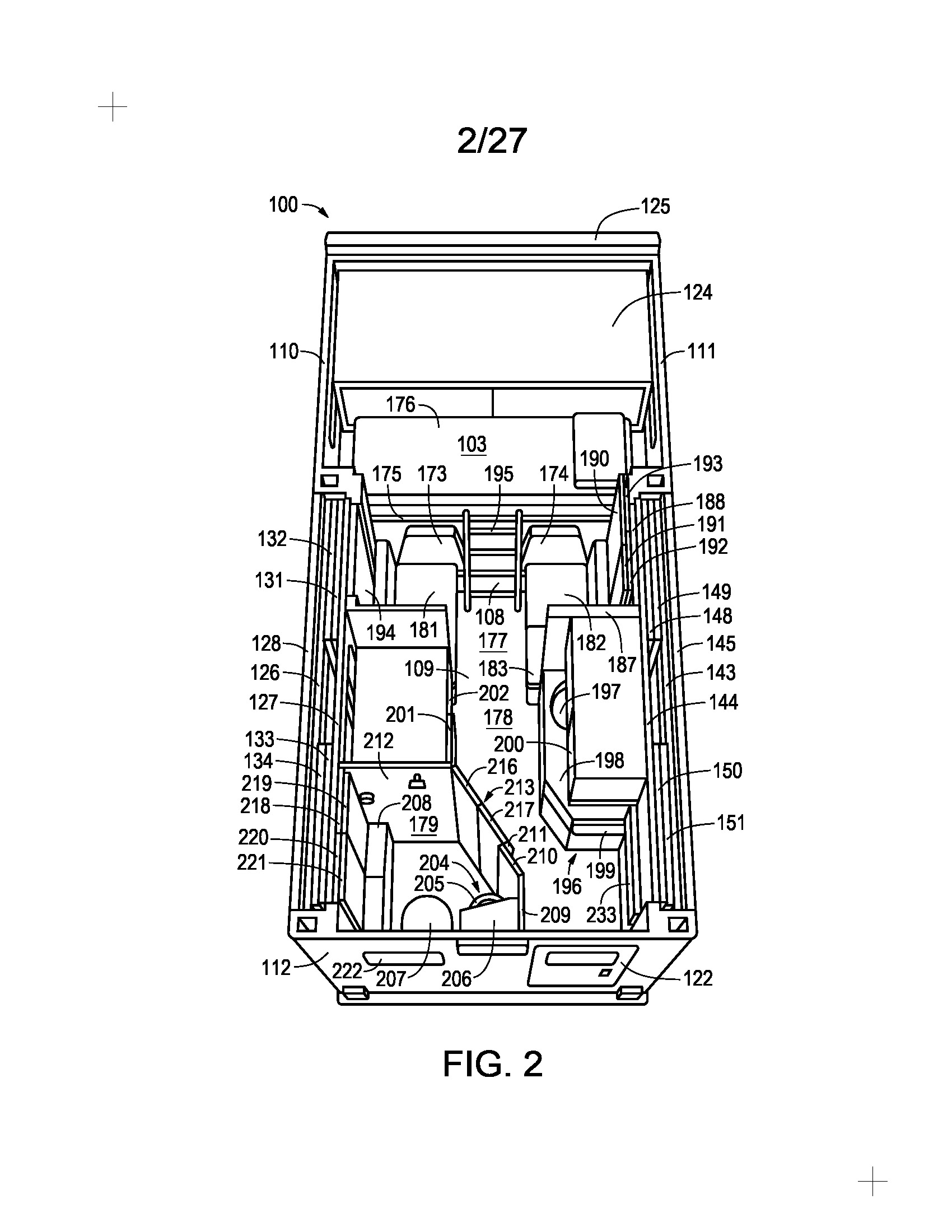

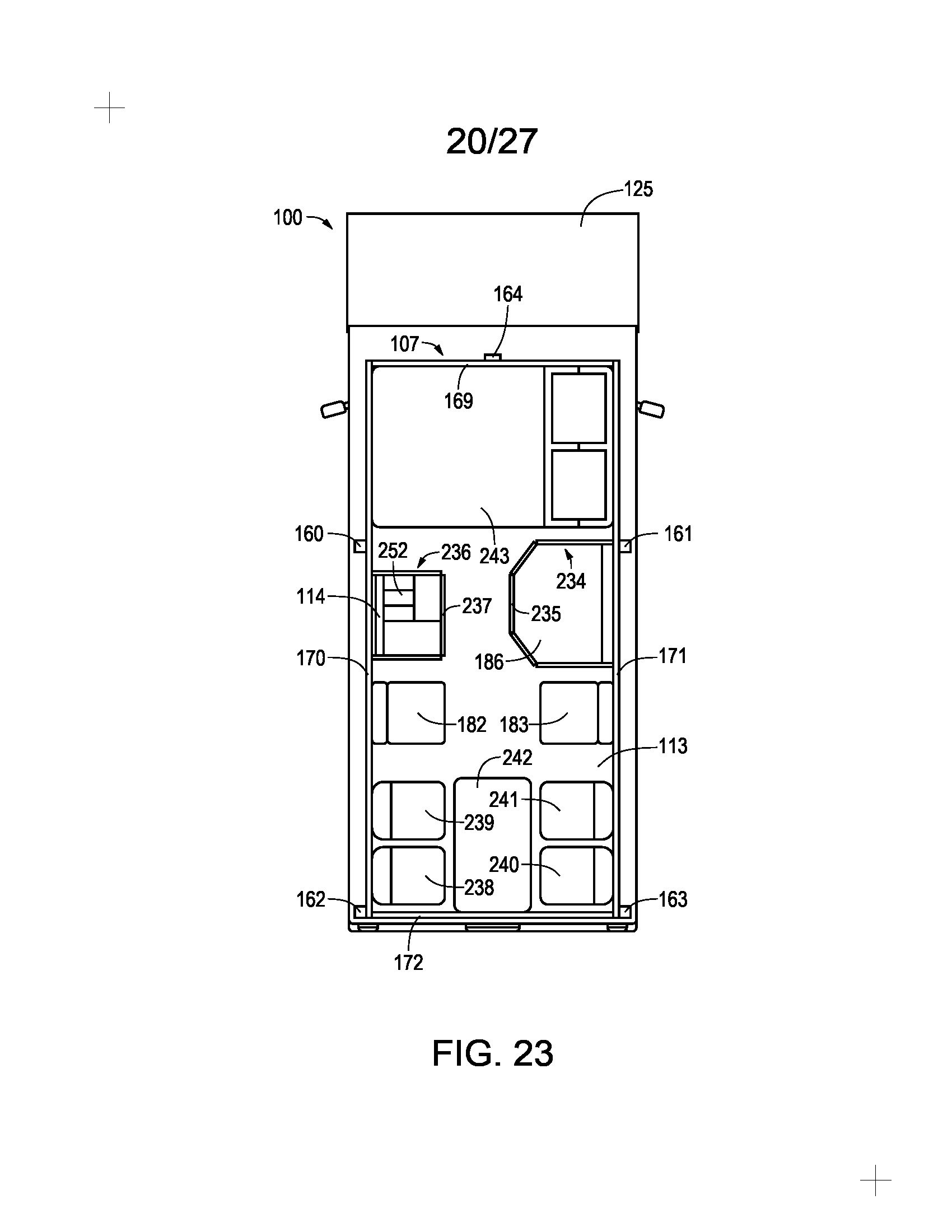

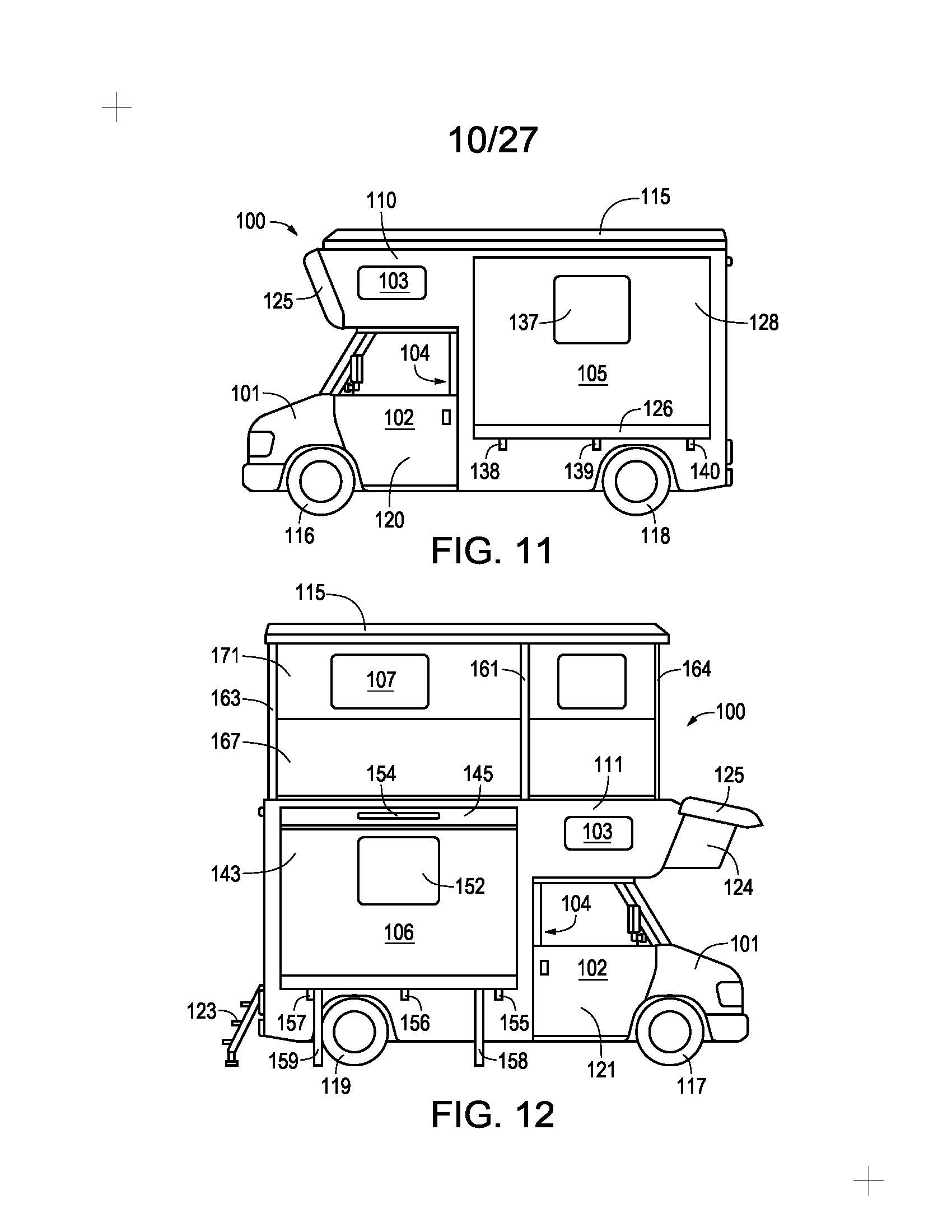

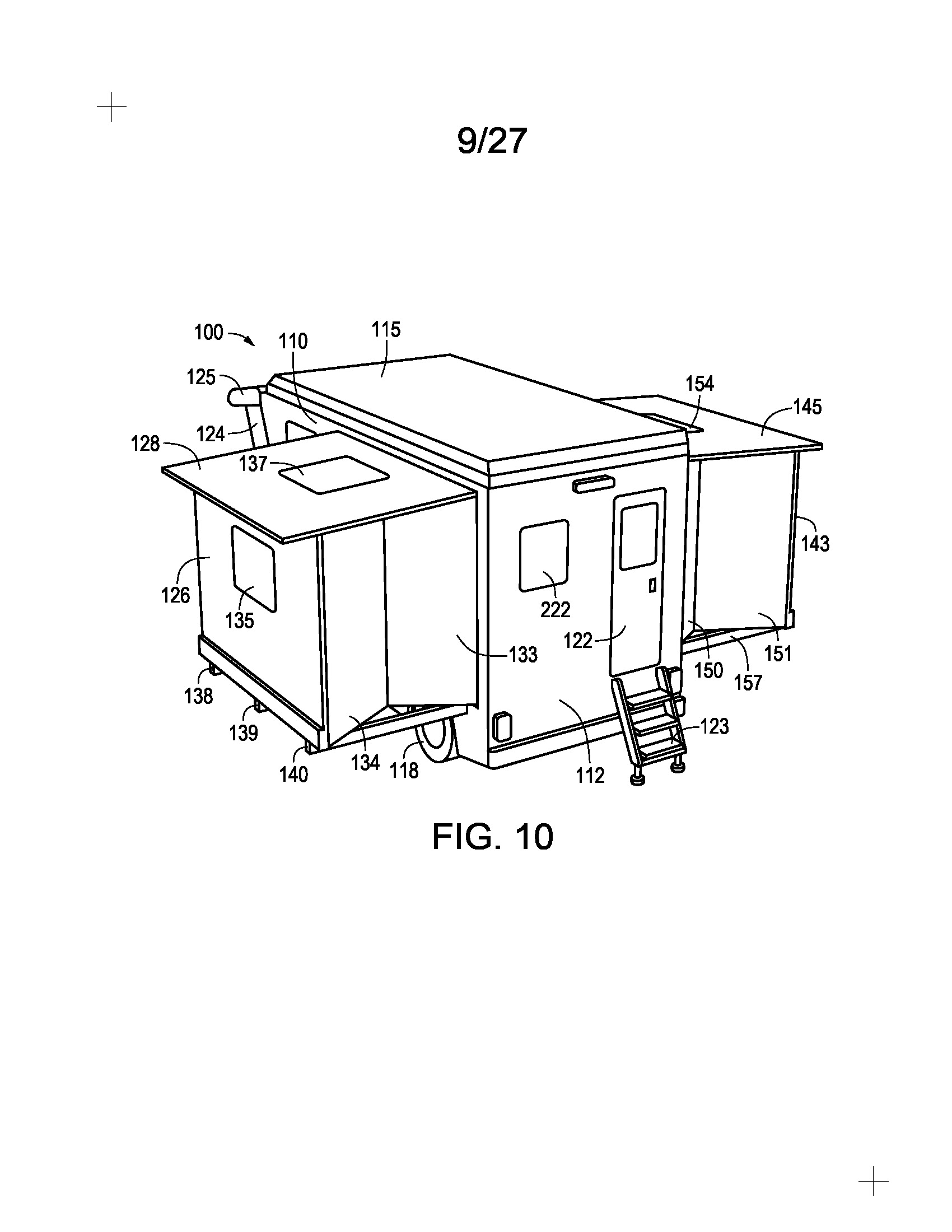

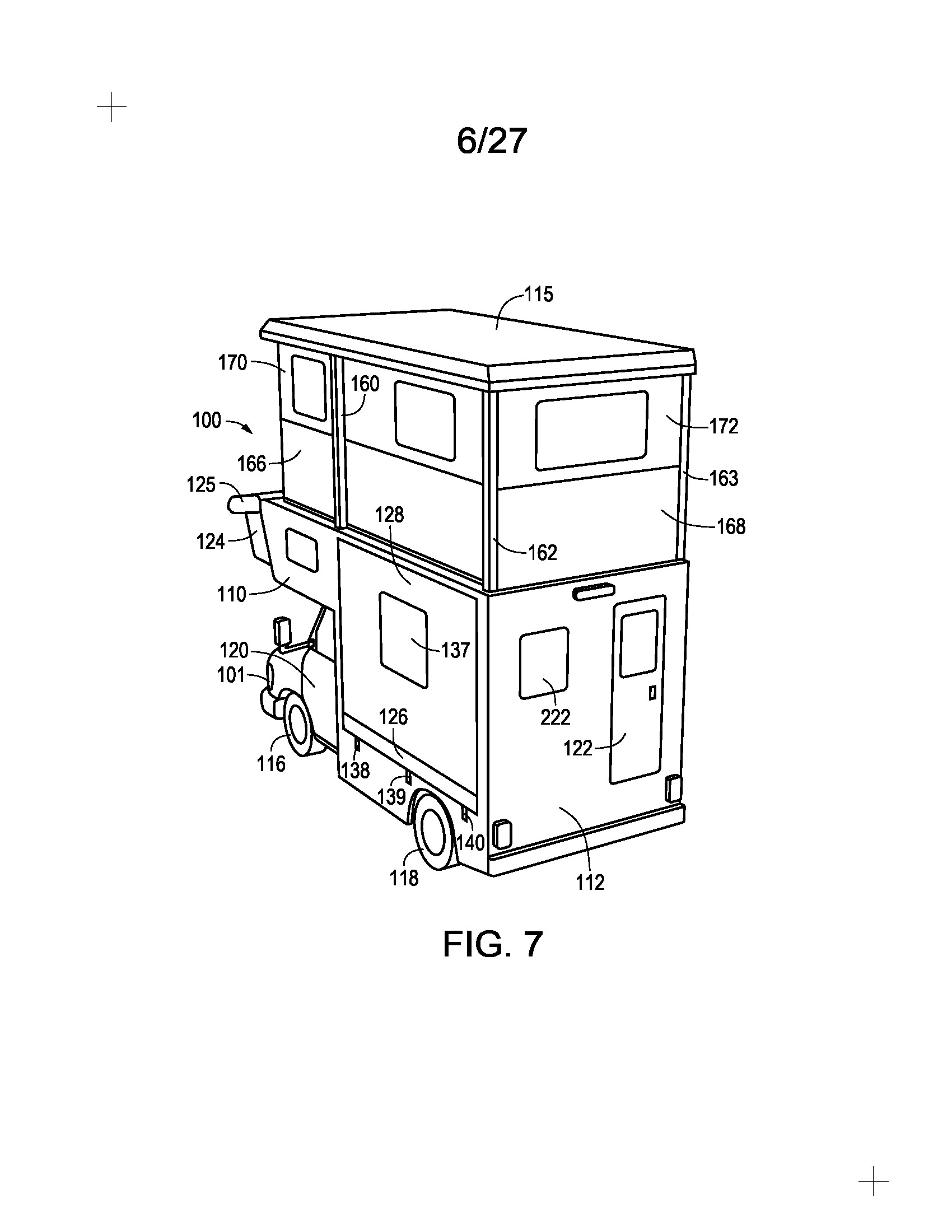

100. motorhome
101. front end
102. cab
103. overcab compartment
104. main section
105. retractable bedroom
106. retractable lounge
107. retractable upper deck
108. lowered floor
109. main floor
110. fixed left side wall
111. fixed right side wall
112. rear end wall
113. upper deck floor
114. hatch door
115. retractable deck roof
116. left front wheel
117. right front wheel
118. left rear wheel
119. right rear wheel
120. left front door
121. right front door
122. rear entry door
123. entry steps
124. storage slide
125. front cap
126. outer bedroom wall
127. bedroom floor
128. bedroom roof
129. forward bedroom wall
130. rear bedroom wall
131. first hinged panel of wall 129
132. second hinged panel of wall 129
133. first hinged panel of wall 130
134. second hinged panel of wall 130
135. window in wall 126
136. trap door in floor 127
137. skylight in roof 128
138. telescopic beam
139. telescopic beam
140. telescopic beam
141. stabilizer jack
142. stabilizer jack
143. outer lounge wall
144. lounge floor
145. lounge roof
146. forward lounge wall
147. rear lounge wall
148. first hinged panel of wall 146
149. second hinged panel of wall 146
150. first hinged panel of wall 147
151. second hinged panel of wall 147
152. window in wall 143
153. trap door in floor 144
154. skylight in roof 145
155. telescopic beam
156. telescopic beam
157. telescopic beam
158. stabilizer jack
159. stabilizer jack
160. telescopic post
161. telescopic post
162. telescopic post
163. telescopic post
164. hinged post
165. bottom deck wall
166. bottom deck wall
167. bottom deck wall
168. bottom deck wall
169. top deck wall
170. top deck wall
171. top deck wall
172. top deck wall
173. front left seat
174. front right seat
175. retractable overcab platform
176. overcab mattress
177. multi-use area
178. kitchen
179. bathroom
180. dinette
181. mountable bench
182. mountable chair
183. mountable chair
184. dining table
185. add-on mattress
186. elevator
187. elevator wall
188. outer elevator door
189. retractable elevator door
190. first panel of elevator door 189
191. second panel of elevator door 189
192. third panel of elevator door 189
193. fourth panel of elevator door 189
194. bedroom door
195. extendable ladder
196. kitchen unit
197. kitchen sink
198. fixed work surface
199. drop leaf
200. oven
201. refrigerator
202. two-way storage cabinet
203. two-way hidable cupboard
204. vanity
205. bathroom sink
206. medicine cabinet
207. toilet
208. removable shower pan
209. fixed inner bathroom wall
210. hinged inner bathroom wall
211. bathroom wall flap
212. forward bathroom wall
213. inner bi-fold bathroom door
214. outer bi-fold bathroom door
215. outer bi-fold bathroom door
216. first panel of bi-fold door 213
217. second panel of bi-fold door 213
218. first panel of bi-fold door 214
219. second panel of bi-fold door 214
220. first panel of bi-fold door 215
221. second panel of bi-fold door 215
222. bathroom window
223. primary bed
224. primary mattress
225. bedside shelf
226. bedside shelf
227. dresser
228. bedroom television
229. folding bedroom table
230. folding chair
231. foldable couch
232. expandable lounge table
233. lounge television
234. elevator barrier
235. elevator gate
236. hatch barrier
237. hatch gate
238. folding chair
239. folding chair
240. folding chair
241. folding chair
242. folding deck table
243. inflatable bed
244. inflatable bed
245. upstairs bedroom
246. upstairs bedroom
247. removable partition
248. removable partition
249. removable door
250. removable door
251. removable door
252. cat staircase

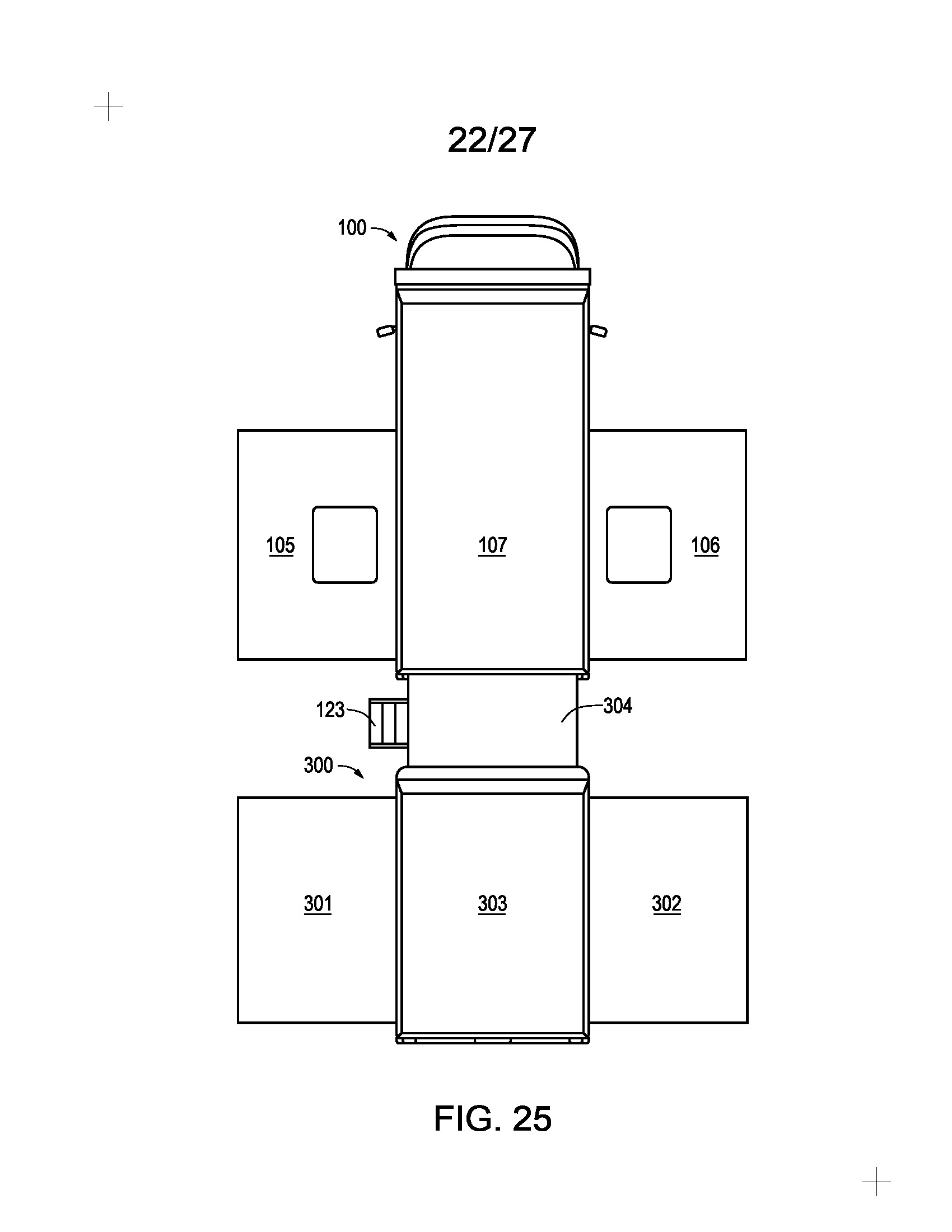

300. expandable trailer
301. retractable left side room of trailer 300
302. retractable right side room of trailer 300
303. retractable upper deck of trailer 300
304. retractable foyer

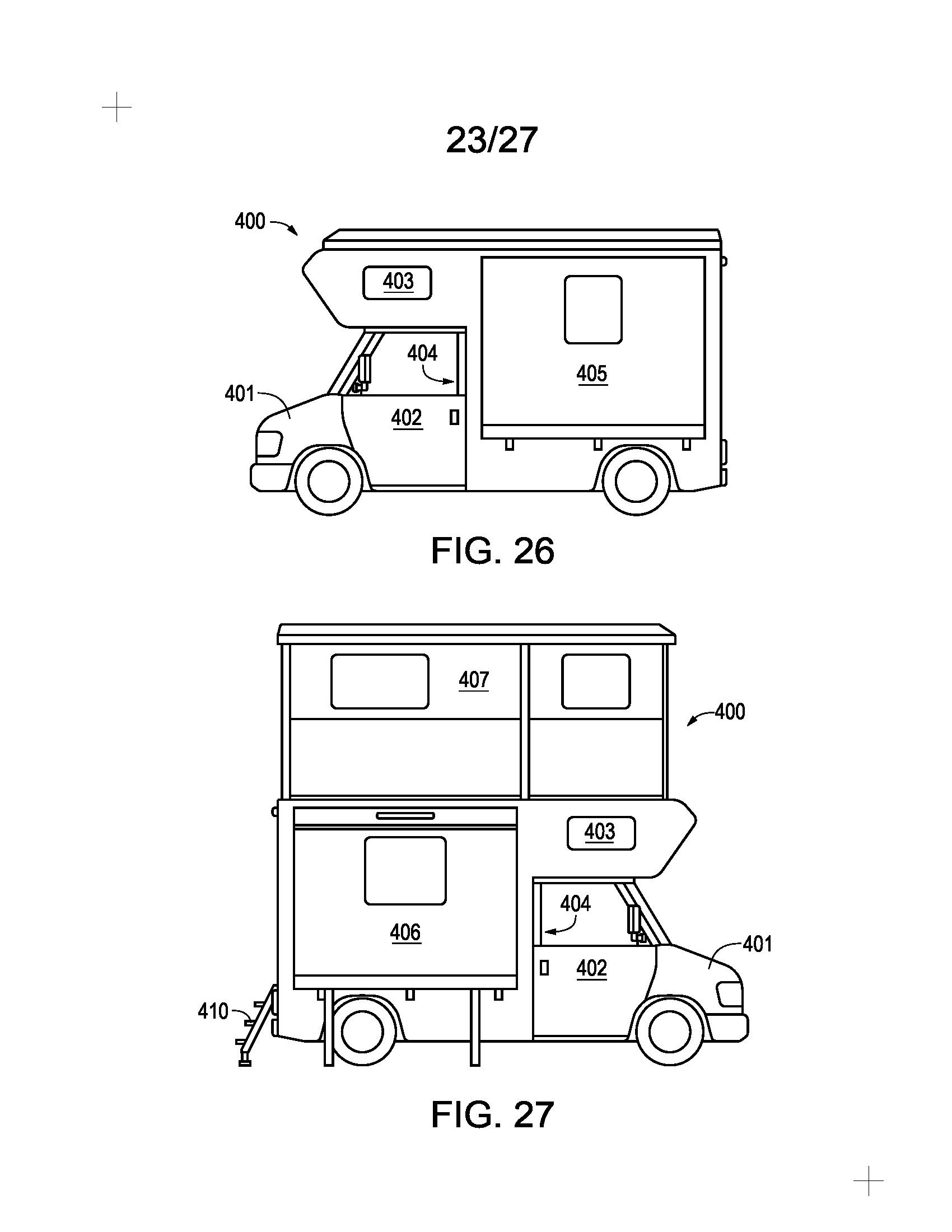

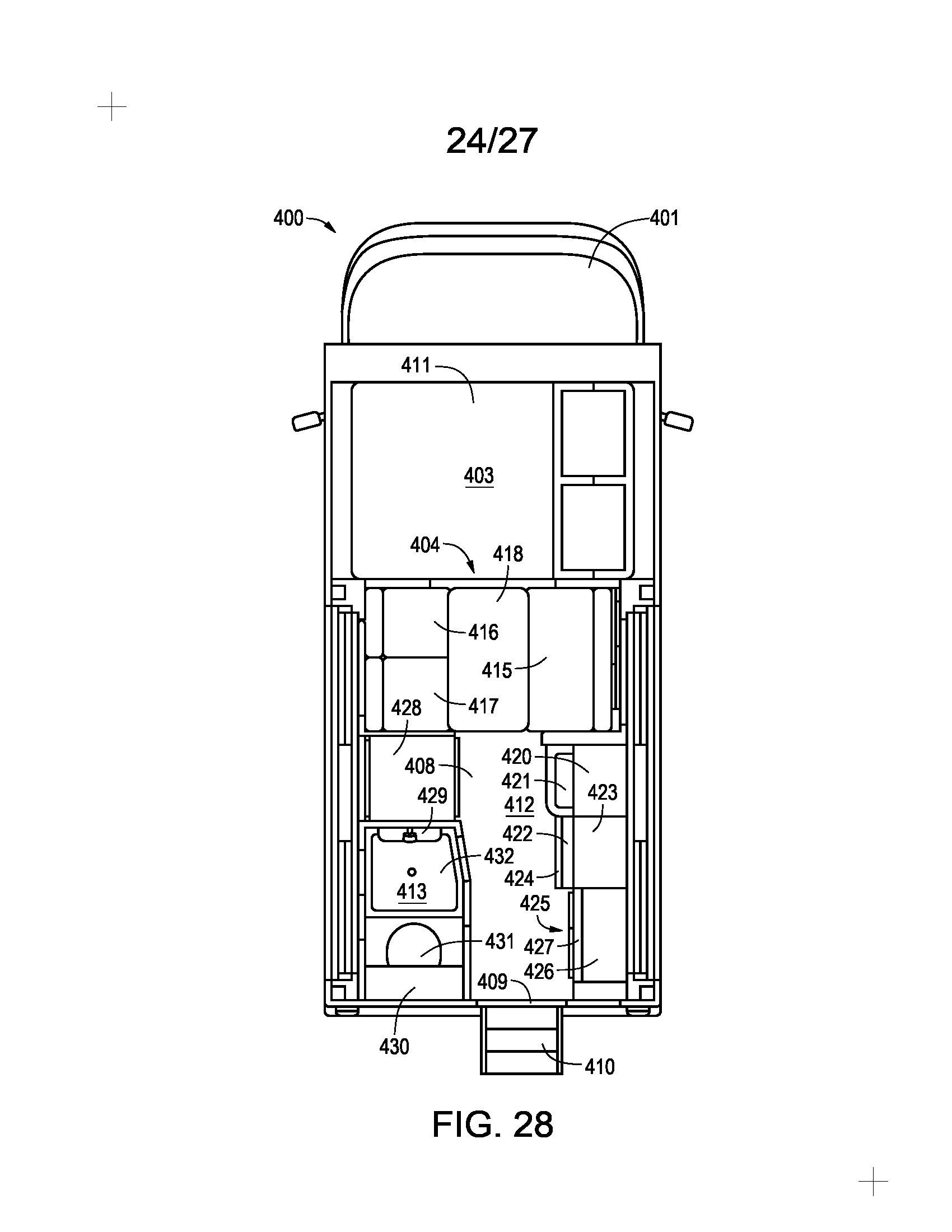

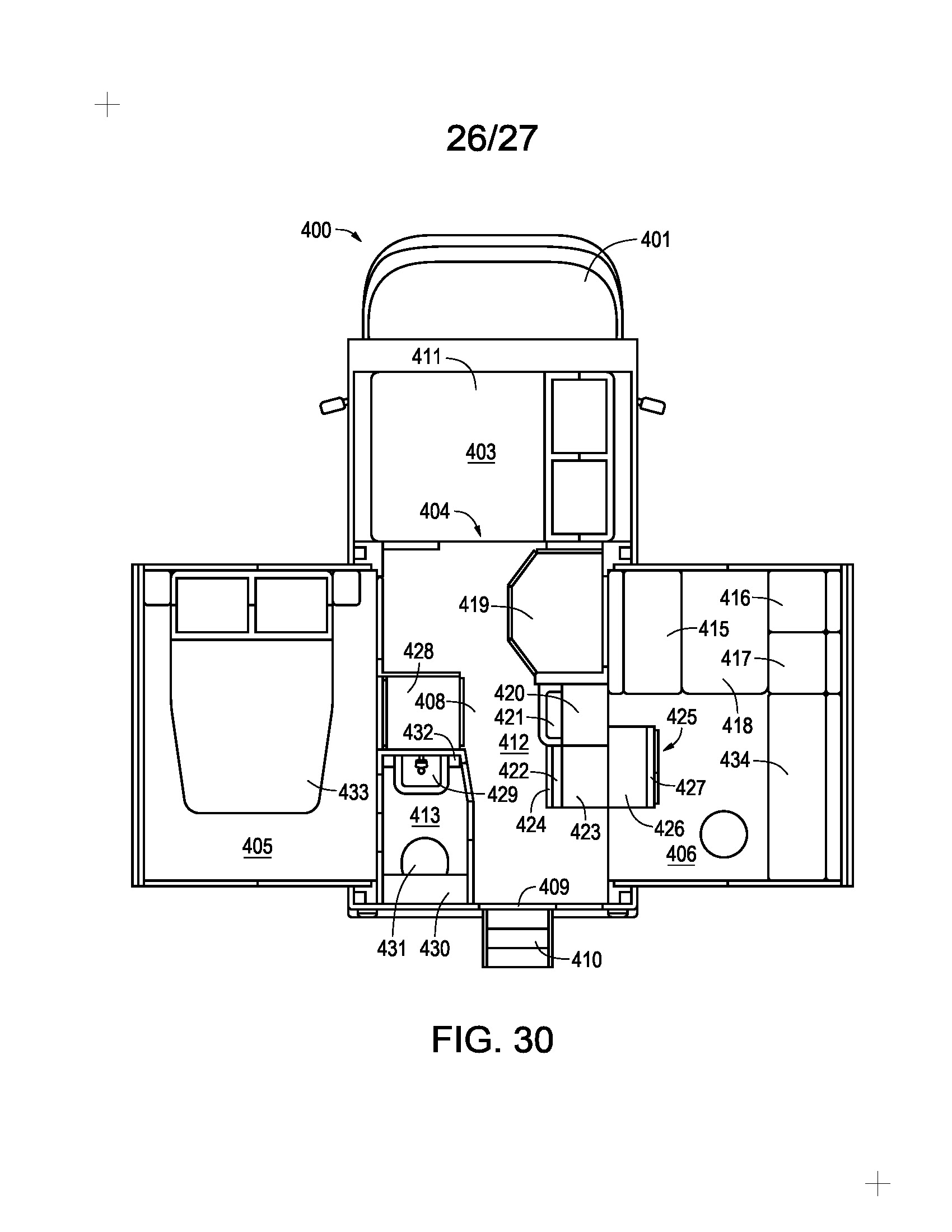

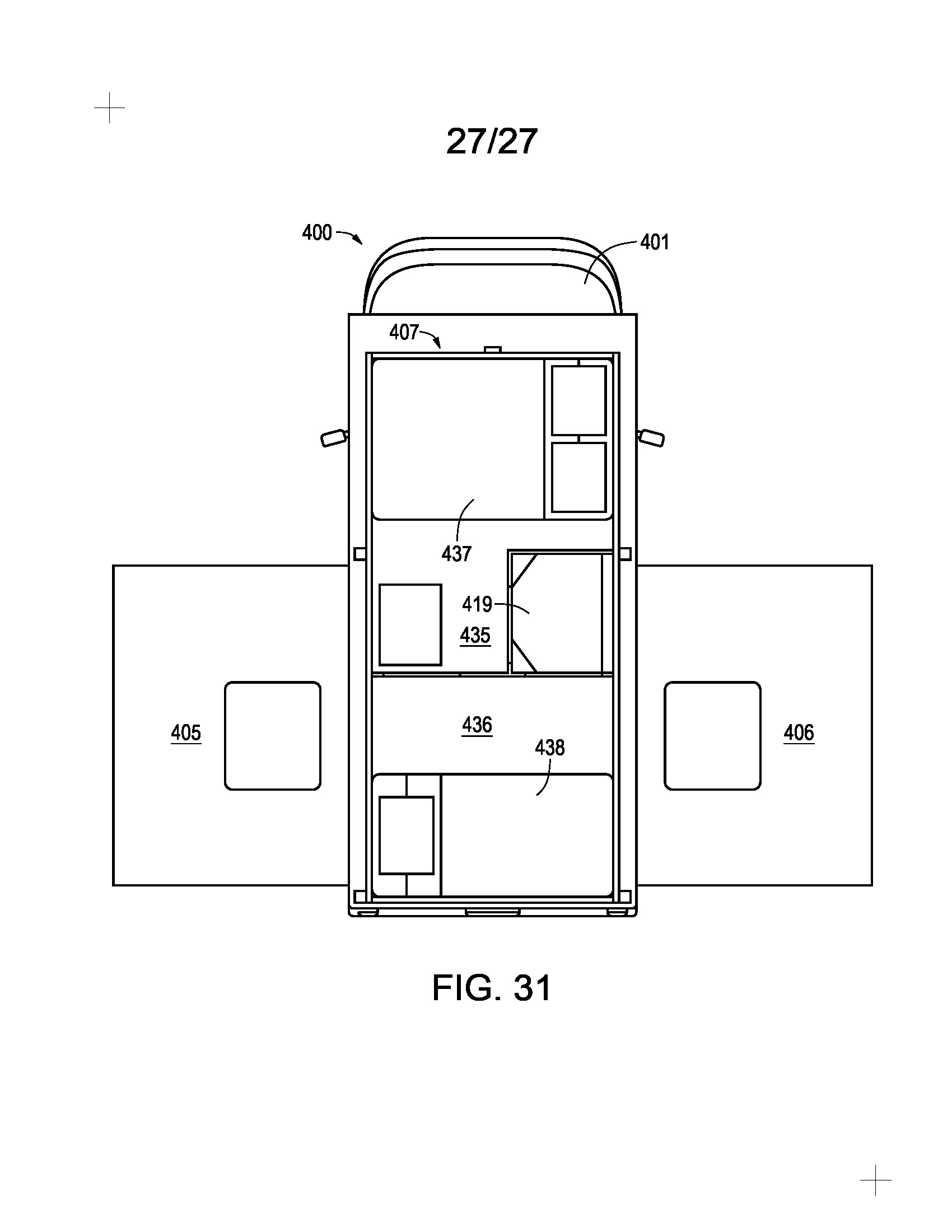

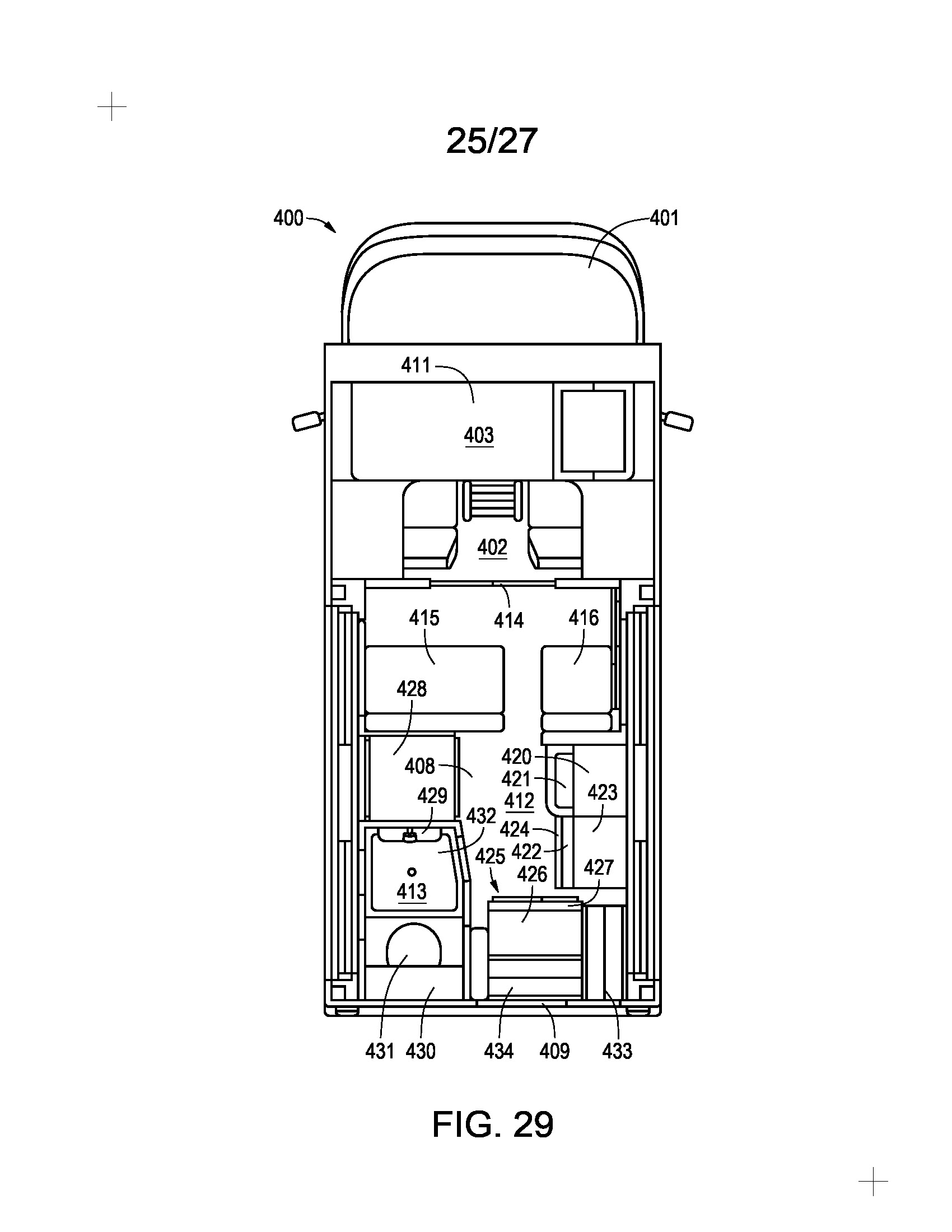

400. motorhome
401. front end
402. cab
403. overcab compartment
404. main section
405. retractable bedroom
406. retractable lounge
407. retractable upper deck
408. main floor
409. rear entry door
410. entry steps
411. overcab mattress
412. kitchen
413. bathroom
414. double sliding door
415. mountable bench
416. mountable chair
417. mountable chair
418. dining table
419. elevator
420. fixed kitchen cabinet
421. kitchen sink
422. fixed work surface
423. oven
424. refrigerator
425. movable kitchen unit
426. movable kitchen cabinet
427. additional work surface
428. two-way storage cabinet
429. retractable bathroom sink
430. bathroom cupboard
431. toilet
432. shower pan
433. foldable bed
434. foldable couch
435. upstairs bedroom
436. upstairs bedroom
437. inflatable double bed
438. inflatable single bed
